Saturday, December 13, 2014


Crude Oil Prices

Oil Price Prediction for end 2014

Oil Price Prediction for end 2014



Prediction of Oil Prices end 2014 - Poll


Tuesday, December 9, 2014


Freightliner Swab Unit

Specifications
185,000 km (approximate)
9500 hours (approximate)
3047m x 1/2" sandline (10,000 ft)
47 ft mast (certified to 45,000 lbs with 1" line)

Monday, December 1, 2014



Liebherr Offshore Crane


Liebherr BOS 2600-65D Litonic Crane

Description

Quantity : 1
Specification (API, etc) : 1204 HP 335
Make : Liebherr
Type : BOS- 2600-65D Litronic
Location (stbd, port, aft, frwd) : Port-Forward
Boom Length (ft) : 45.71m (150 ft)
Block capacities and hoisting speeds : Onboard transfer load rating
Load/radius/speed - minimum radius : 65 mt  /  8.1m /  0-13m/min
with full load / 0-23 empty hook
Load/radius/speed - maximum radius : 65 mt / 40m  /  0-13m/min with full load / 0-23 empty hook
Whip capacity/hoist speed - ld/rad./spd  : 15 mt  /  9.8 m / 44.9 m


Thursday, November 27, 2014


Subsea BOP stack

18 3/4 x 10k Subsea Stack and LMRP

 Primary BOP Stack (from bottom to top)
Stack complete with
Guide frame : Yes
Pick up attachment : Yes
Transport base : No
Size - bore : 18-3/4 in
Working pressure : 10,000 psi
H2S service : Yes

Alternate  Hydraulic Connector
Alternate connector available : Yes
Connector make/model : Cameron HA
Adaptor available : Yes

Tuesday, November 11, 2014


New Escort Tug

Escort Tug - FIFI

Principal Particulars

Built :  New Building – Under Construction
Class :  Bureau Veritas
LOA :  32.5m  / max draft : 4.30m
M/E :  2 x Cat 3516 - 2200 bhp each
Propulsion : Azimuth sterndrive +CPP / BERG Propulsion x 2 units
FIFI : 1200 cubic meter x 2 monitors
Bollard pull : abt 50 ton

Sunday, October 12, 2014


Laydown Unit for sale


Laydown Unit

 Description

The hydraulic systems are a variable speed displacement system with
Sauer Hydraulic pumps and motors. Hyraulic systems are air fan cooled.
The clothes lines are Braden CH230 winch and the fast line
Braden PD 15, operated from the laydown cab with Joy Sticks.

Wednesday, September 24, 2014

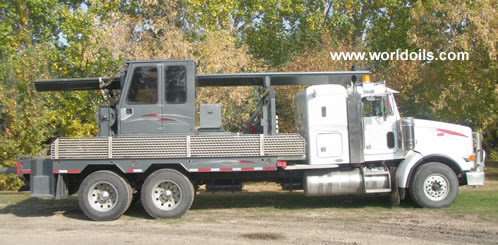

Kenworth Coiled Tubing Unit

2001 built Coiled Tubing Unit

Kenworth T800B CTU for Sale


Unit Features

25,000 LB RT25 Coiled Tubing Injector
10,000 LB Knuckle Crane
5,000 M (1" CT) Capacity Reel
1 m3 Soap Tank
660 Cfm Hurricane Compressor with 330 CFM Low Stage
5 Large Tool Compartments
Includes All Tooling
Roots Lobe Blower
Continental & Linde Hydraulic Pumps

Monday, September 22, 2014


1100hp Mechanical Land Rig
Mechanical Land Drilling Rig
Unit U40 Mechanical Land Drilling Rig


Substructure

16’H x 46’L Box-on-Box Substructure w/ Rotary Beams, V-Door, Stairs, Safety Rails,
Deadline Anchor, Built-In Parts Rooms, Air Receiver Tank, Wiring, Plumbing, Skidded
w/ Steam Heaters & Hydraulic Power Units Mounted.

Wednesday, September 17, 2014

140ft Offshore Pedestal Crane for Sale

National OS-435 Refurbished Offshore Pedestal Crane


 Specifications

• Hydraulic pedestal crane model : National OS-435 H.D
• Original year of manufacture : 1981
• Boom length : 42.675m (140ft)
• Weight : 105,400 Lbs / 47, 810Kg (incl. Boom)
• Main hoist capacity : 28,875Kg @ 19.5m (platform duty)
• Whip hoist capacity : 7,275Kg @ 46.5m (platform duty)

Overhaul included :
- Full engine overhaul including Dyno Test
- Triple Gearbox refurbished
- Booms & A-frame blasted, painted & NDT inspection completed
- Bridle Assembly inspected and NDT
- All sheaves & shafts inspected and NDT
- Slew bearing refurbished and NDT
- Boom, Main and Whip rope winches inspected
- Brake band linings renewed

Sunday, September 14, 2014


OIME 2000 Drilling Rig

2000 HP SCR Drill Rig

Drilling Rig with Newly built Components

Drawworks
OIME 2000 HP drawworks, 42VC1200 high drum clutch and 38VC 1200 low
drum clutch, Driven by two (2) GE 752 type series wound DC traction motors
with 10 hp blowers. Complete with Wichita 336 water or glycol cooled
auxiliary brake.

Mast
DSI 150’ beam leg with 1,000,000 lb hook load capacity and mast assembly stand.
Crown Block - 1 x 60” fabricated steel fast line sheave and 6 x 60” working sheaves.
Sheaves grooved for 1-3/8” line. Geronimo line is 9/16” line 1.5 times derrick height in
length. Drill pipe capacity is 242 stands of 5” DP and 10 stands of 9” DC’s. One mast
assembly stand and two stands to elevate the blocks are included.

Deadline Anchor
- 100,000 lb deadline anchor, Deadline is on off-driller’s side

Substructure
DSI 30' box-on-box with a casing capacity of 1,000,000 lbs and a setback capacity of
600,000 lbs., Includes a complete set of hand rails and wind walls 8’ high.

Sunday, September 7, 2014

Vessel Operations Software


Vessel Operations Software
SEEMP and EEOI Software
Ship Monitoring Software
Live Monitoring of ships

SEEMP and EEOI Software for Ships

Ship Operations and Vessel Monitoring Software
Speed and Consumption Monitoring Software

Bunker Consumption Monitoring Software
SEEMP and EEOI Calculations Software






Wednesday, September 3, 2014

40m Offshore Utility Vessel

40m Offshore Utility Vessel

Standby/Survey/Utility Vessel

1982 Built Standby Vessel

 Particulars
Year Built : 1982
Classification : AMS, ABS A1+AMS + E


Details
Length overall : 40m
Breadth : 10m
GRT-NRT : 496/102
Depth moulded : 4.2m
Maximum draft : 2.7m
Clear deck space : 80m2
Deck loading : 5 t/m2
Max speed : 10 kts
Economical speed : 8 kts

Thursday, August 21, 2014


Ideco H44 Carrier Mounted Drilling Rig

 700 hp Carrier Mounted Drilling Rig

 Carrier Mounted Drilling Rig

  Carrier Mounted Drilling Rig in USA

Drawworks
Ideco H-44 Single drum, 700 HP, lebus grooved 1-1/8” line, foster makeup
& breakout catheads, air drillers control console, crown-o-matic, brake.

Rotating Equipment
Rotary Table - Ideco 20-1/2” rotary table with split master bushings
Swivel - National PC-225, 225 ton swivel
Kelly Spinner - Foster hydraulic Kelly spinner
Hex Kelly - 5-1/4” x 40’L hex Kelly
Kelly Drive - Vardo HD Kelly drive bushing square drive
Kelly Valves - 5,000 psi upper Kelly valve, 5000 psi lower Kelly valve

Tuesday, July 22, 2014


1000hp New Land Drilling Rig

Trailer Mounted Land Drilling Rig

 1000 hp Mechanical Drilling Rig
Drawworks – OEM-1000

i. Disc Brake System – Two (2) 60” O.D. x 4” Thick water cooled disc: Four (4)
brake calipers w/park feature, each caliper can develop 48,000 ft-lbs @ 100 psi.
Maximum 900 rpm calipers have a park feature rated @ 28,000 ft-lbs each.
Manufacturer = Kobelt

ii. Air Clutch – Two (2) 30” diameter friction disc, slip torque rating
54,500 ft-lbs @ 100 psi, maximum 760 rpm, 1664 sq in lining area.
Manufacturer = Witchita.

iii. Drum 24” O.D. x 40” length with Lebus groove system
iv. Centralized Lubrication System
v. Drill line Diameter-1 1/8”
vi. Drive Chain - Four-strand, 1 ½” pitch
vii. Total Disc Brake Area - 1680 sq. inches

225 feet Jack Up Barge
 Self-Elevating Paltforms



Classification Notation
ABS, *A1, Self-Elevating Units, * PAS

Main Dimension
Length overall Loa : 66.90m
Length moulded : 43.80
Breadth moulded B : 39.00m
Depth moulded D : 5.20m
Design draft T : 3.20m

Main deck area : ≥ 500sqm
Maximum variable load : 800t
Dec load : 5t/sqm
Speed : ≥ 4.0kn

Ideco H3000 Mechanical Drilling Rig

3000 hp Drilling Rig for Sale in USA

Mechanical Drilling Rig

Ideco 3000 hp Drilling Rig

 Description

Drawworks
Ideco H-3000 hp mechanically driven, with main drum grooved for 1 5/8” Drilling Line.
Drawworks is provided with Make-up/Spinning Cathead, Foster Type 37S-AK,
Breakout Catheads, Foster Type 24B-AK and Crown-O-Matic with emergency
activator switch on Driller’s Console.

Auxiliary Brake
Baylor Auxiliary Eddy Current Brake, Model 7838 c/w 100 bbls Brake Cooling water tank.
The Drawworks c/w Auxiliary Brake is installed on the extended sling shot base skid.

Mast
Lee C. Moore, Cantilever Type, 30,000 ft Drilling Depth Capacity (5” Dp), 156 ft height,
30 ft x 30 ft Drill floor, Static Hook Load 1,555,000 lb, Casing Capacity 1,500,000 lb,
Max. Lines 14, Set-back Load Cap. 30,840 ft 5” Dp (800,000 lb).

Mast is provided with the following :
1. Monkey Board.
2. Casing Stabbing Board (adjustable from 20-50 ft)
3. Belly Board.

Monday, July 14, 2014


Drilling Rig 13,000' Capacity


Land Drilling Rig - JC 40 DB draw-works
Used Drilling Rig for Sale

Draw-works
JC 40 DB draw-works with 238DBBS Eaton air-cooled
disc brake powered by (1) 1000 (kw) AC traction motor

Substructure & Mast
JJ225/42-KS1 138’ mast, 500,000 hook load .
1 1/8” Line; hydraulic raising
Substructure=DZ225/6.
7-S1; height 22’ H;
500,000 set back load; hydraulic raising

Generators
3)1000GF4- 1000 KW;600 volt;60 Hz;
AC generators powered by (3) Chinese  3512  diesel engines)
(1) Volvo auxiliary gen set 400kw 480v 60 Hz only for pre start.

Mud pumps
(2) HHF-1300 hp; powered by (1 each) 1000 (Kw) AC traction motors;
max output 720GPM (7” liners)

Tuesday, July 8, 2014


Drilling Rig Schramm T130 for sale in USA

Drilling Rig - Schramm T130

Used Schramm T130 Drilling Rig with Mud Pump

2014 Built Schramm T130 Drill Rig


Model : T130 Drill Rig
 Manufacturer : Schramm
 Year : 2014
 Condition : Used

Description

Schramm T130 drilling rig
 1300 cfm / 350 – 500 psi air compressor
 (Excellent condition, oil changed every 100 hours)
 Sub Structure – extra heavy with folding ramp
 Hammer oiler
 4000' ft of (30' x 4-1/2") drill pipe (tested)
 4 drill collars
 2 Numa hammers (one P120 & one N 100) with 14 inch bits – low hour
 with 1 new bit still in the crate

Wednesday, June 18, 2014


Failing Holemaster 3000-CF Drill Rig

Drilling Rig Failing Holemaster 3000-CF

Failing 3000-CF Drilling Rig

Land Drilling Rig for sale in Africa

Drilling Rig - Failing Holemaster


Model : 3000-CF Drill Rig
Manufacturer : Failing
Condition : Used

Description

Failing Holemaster 3000-CF drill rig
Rated capacity: 3700 ft. depth w/3-1/2” drill pipe.
Mast: Cold drawn street tubing, elec. welded, 3-sect. w/3-way taper on top sect.
Hydraulically raised & lowered. Wired for elec. lights. Equipped w/retracting
channel swivel guides for reverse circulation swivel. Equipped w/ladder,
climber’s safety device
